BEACON ULTRA SLIM
LMF-HO831 SERIES

For these applications, the additional Beacon has been developed which offers effective 360° radiation with its compact design - even in limited spaces. A robust aluminium base is used for efficient cooling of the high-performance LED modules. The "Ultra Slim" series can be synchronised with each other.

LED COLOR: Amber, Blue, Green, White.
COLOR LENS: Clear, Blue, Amber, Green.
CERTIFICATIONS: ECE R10, ECE R65 class 2, CISPR25 class3.
NUMBER OF LED: 18 LED.
FLASH PATTERNS: 8
SYNCHRONISATION: Yes
WATTAGE: 17.1W
INPUT VOLTAGE: 9-32V
IP RATING: IP67.
DIMENSIONS: 112 x 112 x 46mm.
MOUNTING OPTIONS: 3 bolts, Single Bolt, Flexi DIN, Magnetic Base, German Plug.

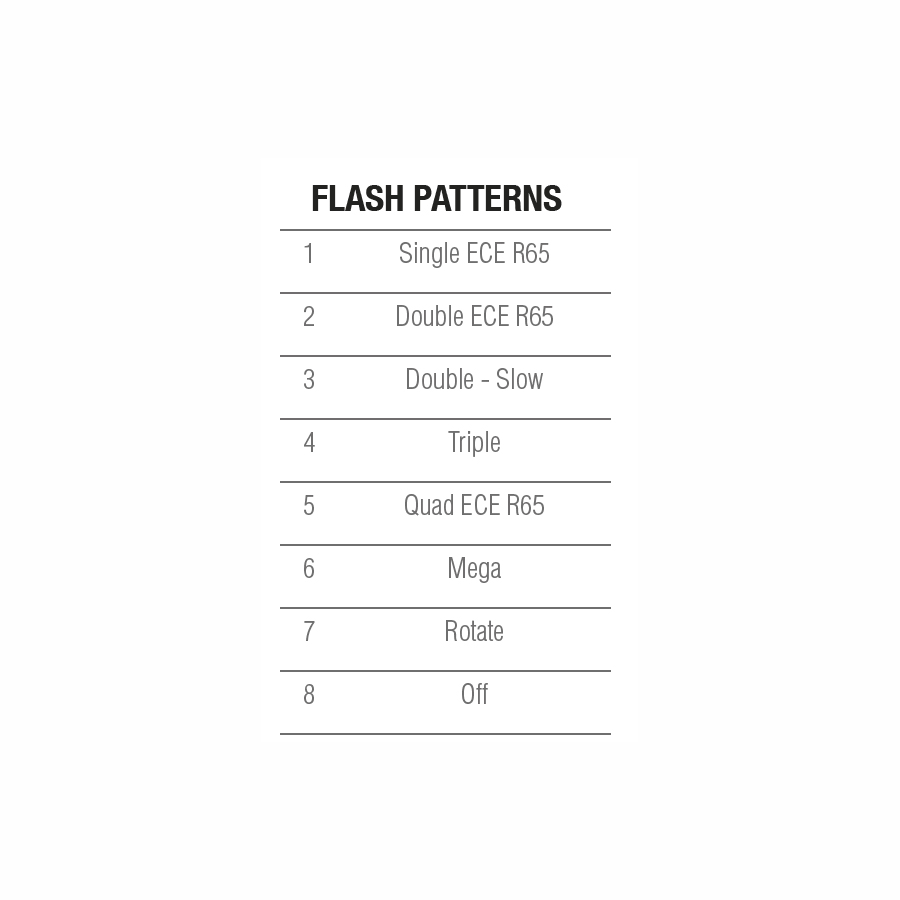

LMF-BE03 Patterns


LMF-HO831A -Amber Flash + Magnetic Base
LMF-HO831AH -Amber Flash + Flexi DIN
LMF-HO831A-G -Amber Flash + German Plug
LMF-HO831G-G -Green Flash + German Plug
LMF-HO831G-BM -Green Flash + Magnetic Base

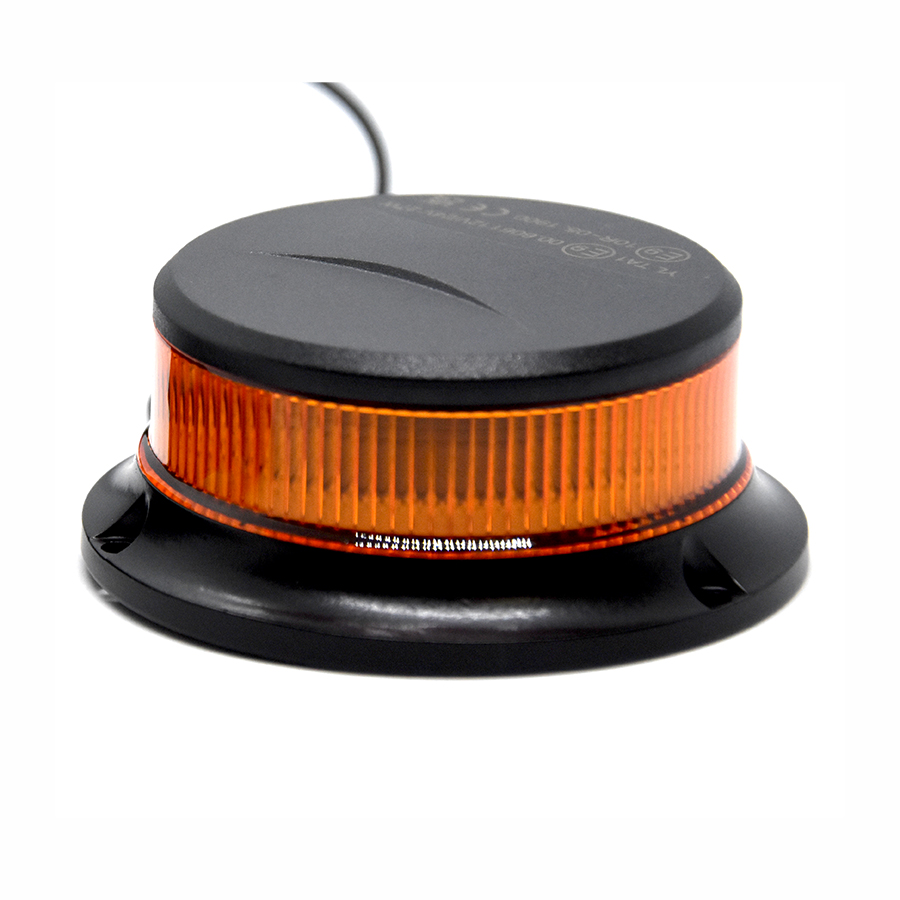

LMF-HO831A main

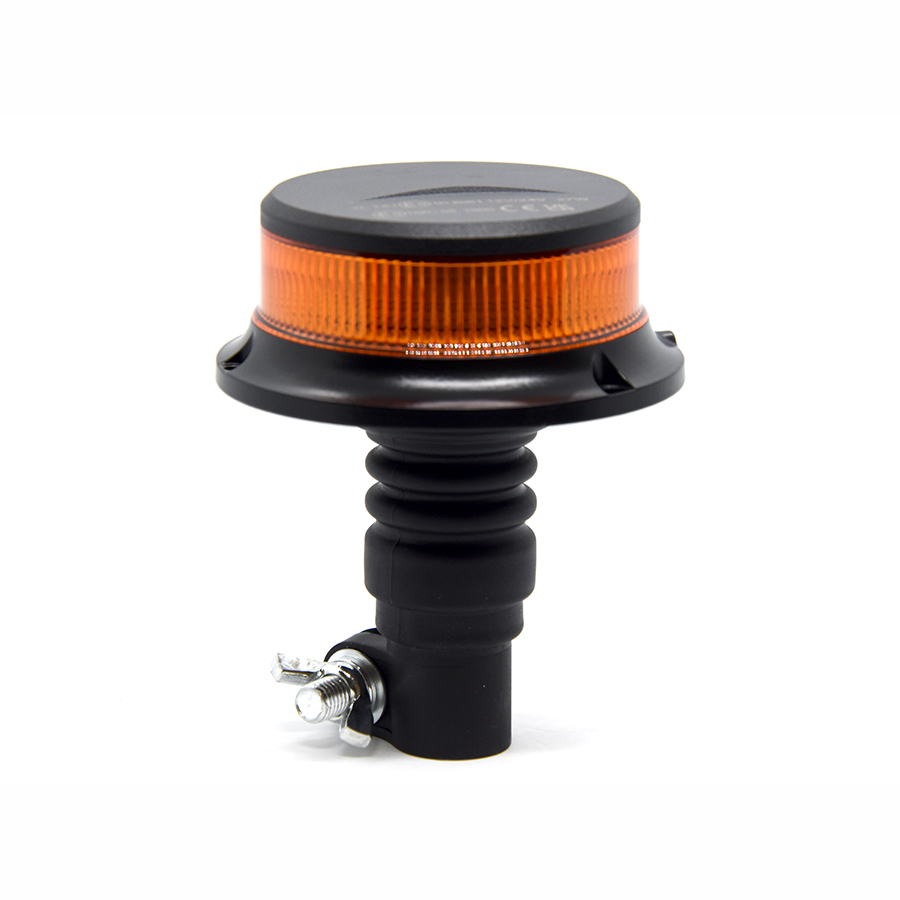

LMF-HO831AH Flexi Din

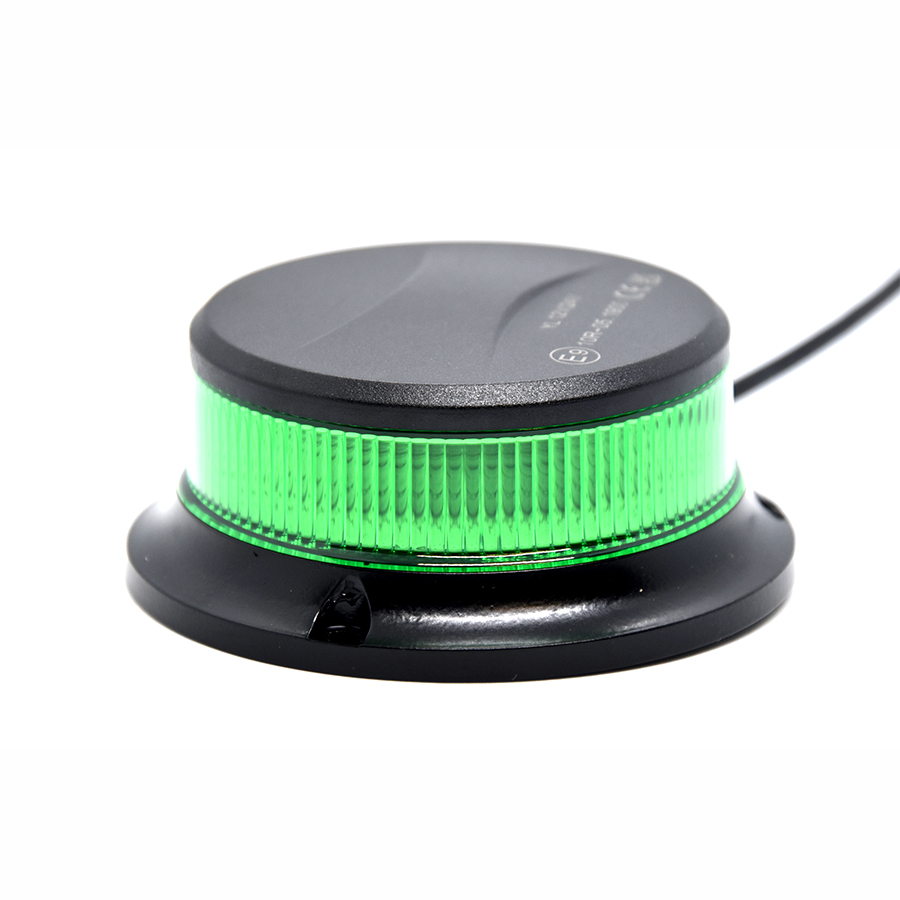

LMF-HO831G-BM Blue

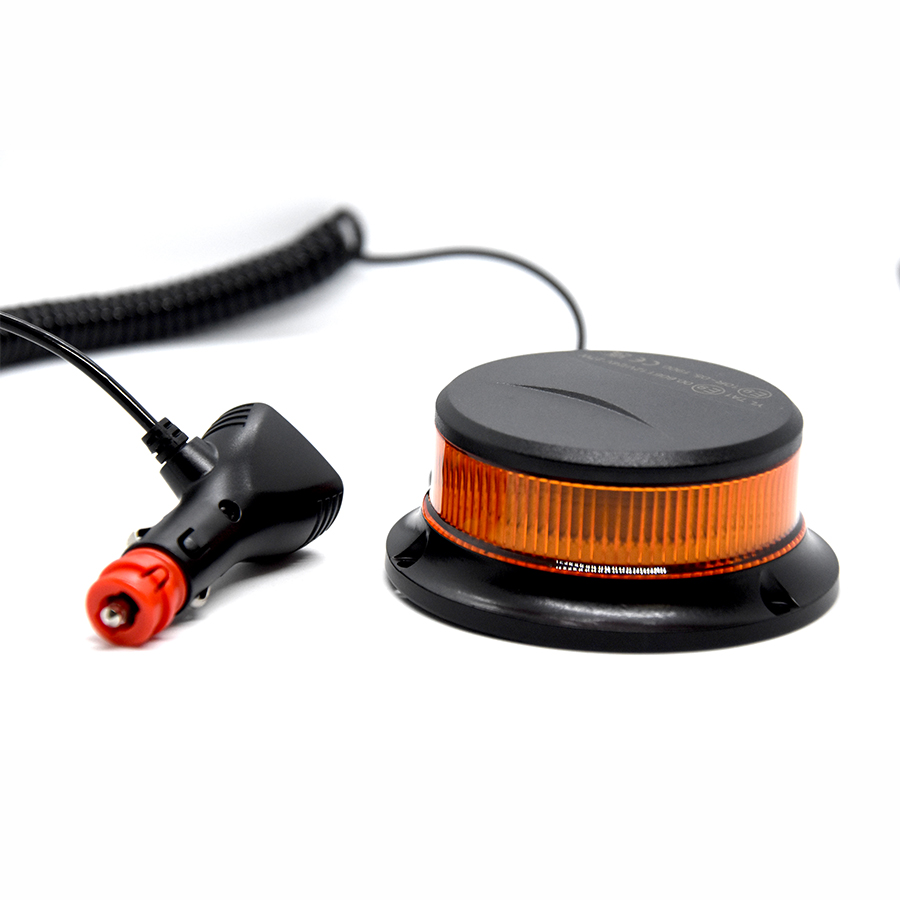

LMF-HO831A-G

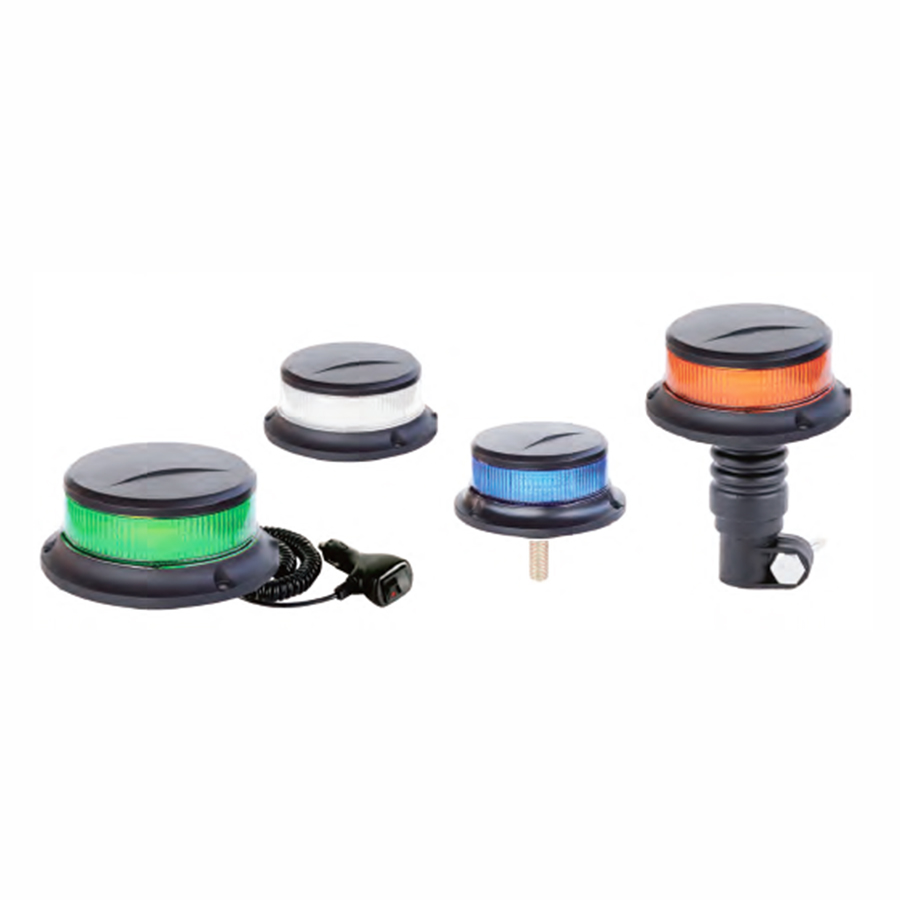

LMF-HO831 Mountin options
