RAYZOR S1

Get the latest information

LUMIDRIVE THE RAYZOR SERIES

DOWNLOAD BROCHURE!
Advertisor Signal Light

RAYZOR S1 - DRIVING LIGHT

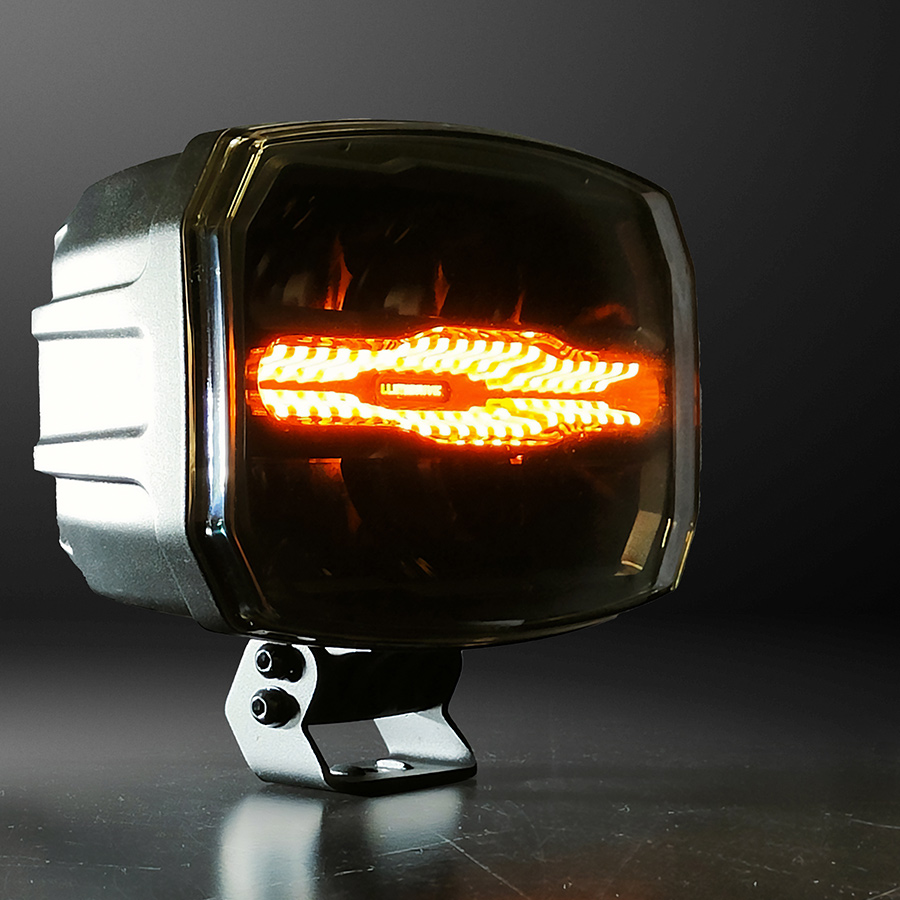

Rayzor 9 Main
Rayzor Position Light
DYNAMIC POSITION LIGHT & FLASH Selectable between White or Amber Position Light.

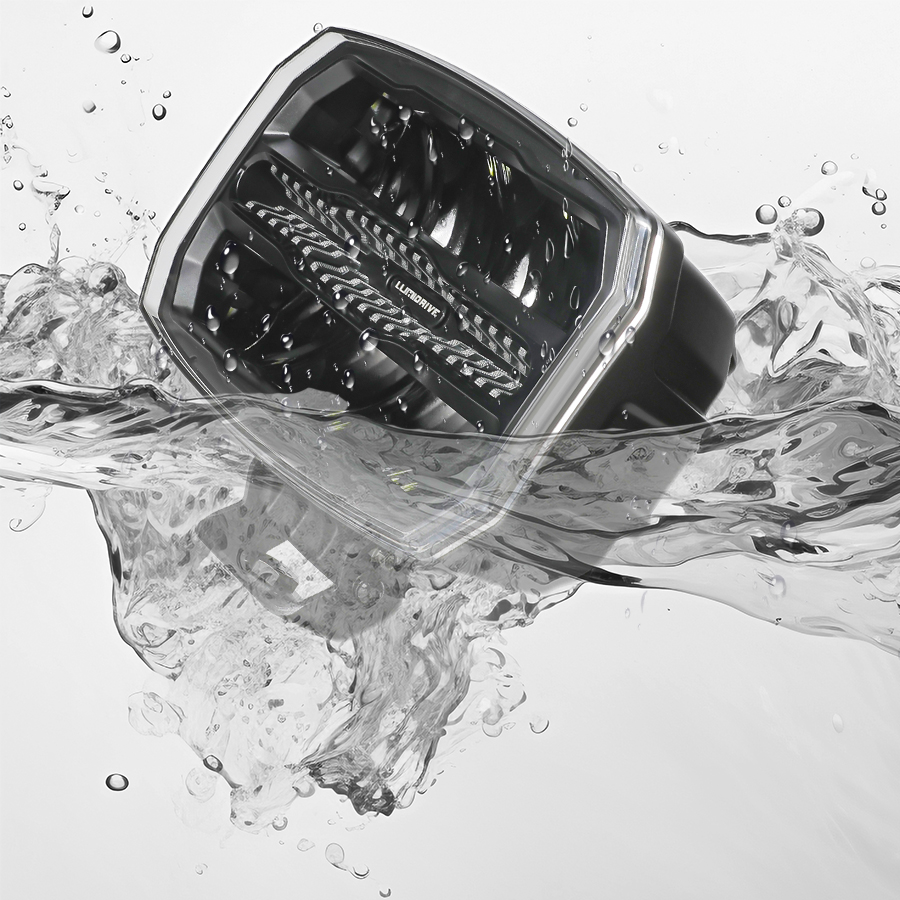

Rayzor 9 IP67
WATERPROOF Fully Sealed And Waterproof
IP Rating: IP67


Get A Perfect Lighting

FEATURES

LMD-RZR-S1

With Position Light - Road Legal - ECE R10/R65/R148/R149 - CE - RoHS

With its ultra-black design that gives it a unique look, both elegant and discreet, its ultra-detailed position light, inspired by mini fins, emits an intense light that will catch everyone’s attention. Optimized to deliver maximum power and a perfectly balanced beam, it incorporates the latest advancements in lighting technology. You will find, among other features: A dynamic position light | An ECE R65 flash function | Three additional operational flash modes | A sectionable position light (White or Amber). All of this comes with a 6-pin DEUTSCH connector for simplified installation.

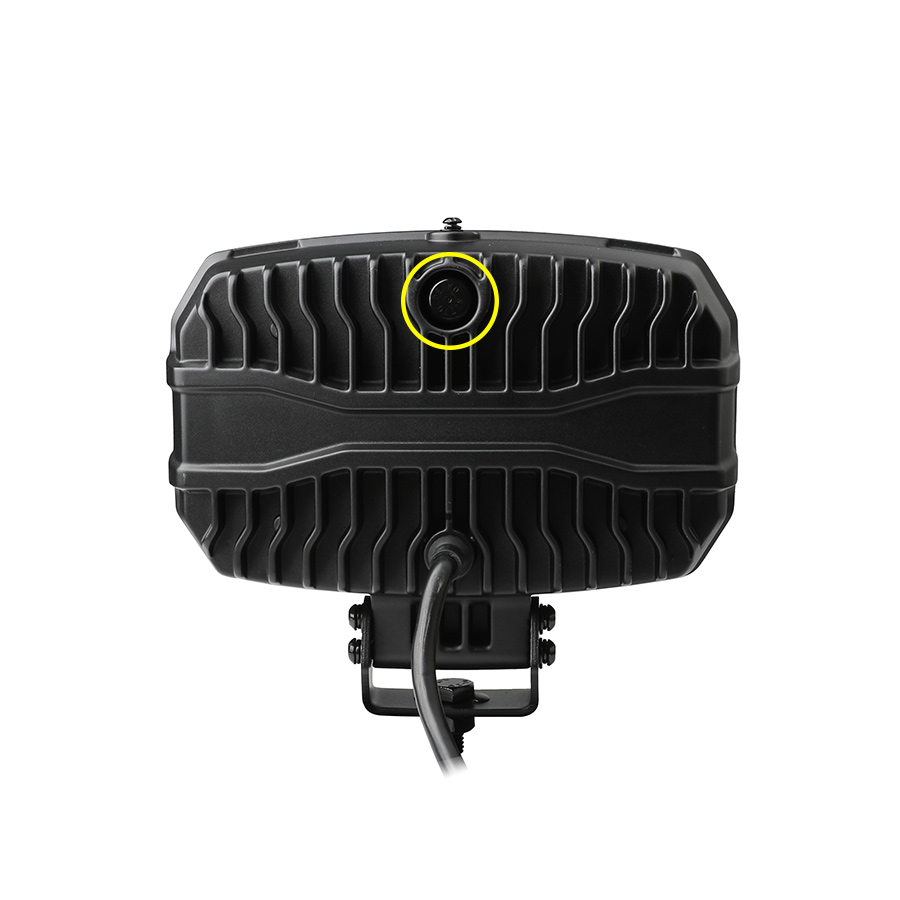

Rayzor 9 Back
ANTI-MOISTURE - VALVE

A valve to release moisture.

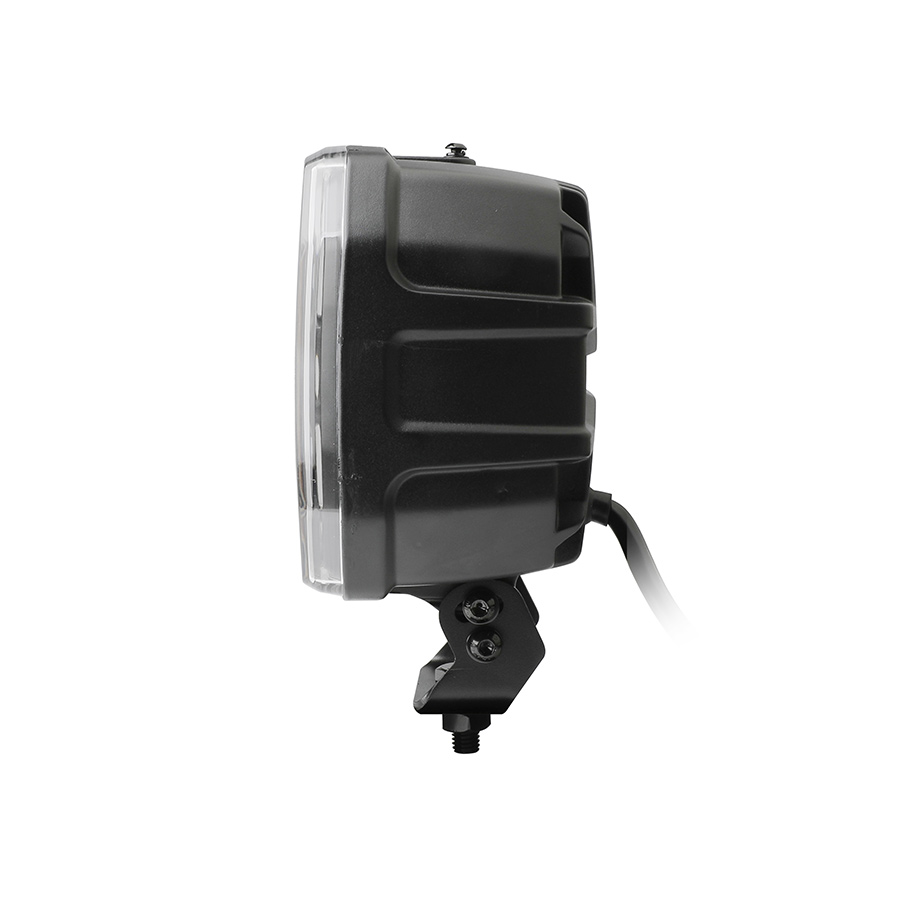

Rayzor 9 Side
ADJUSTABLE - TRUNNION BRACKET

Use the 4 points bolts on the sides to adjust the best lighting position.

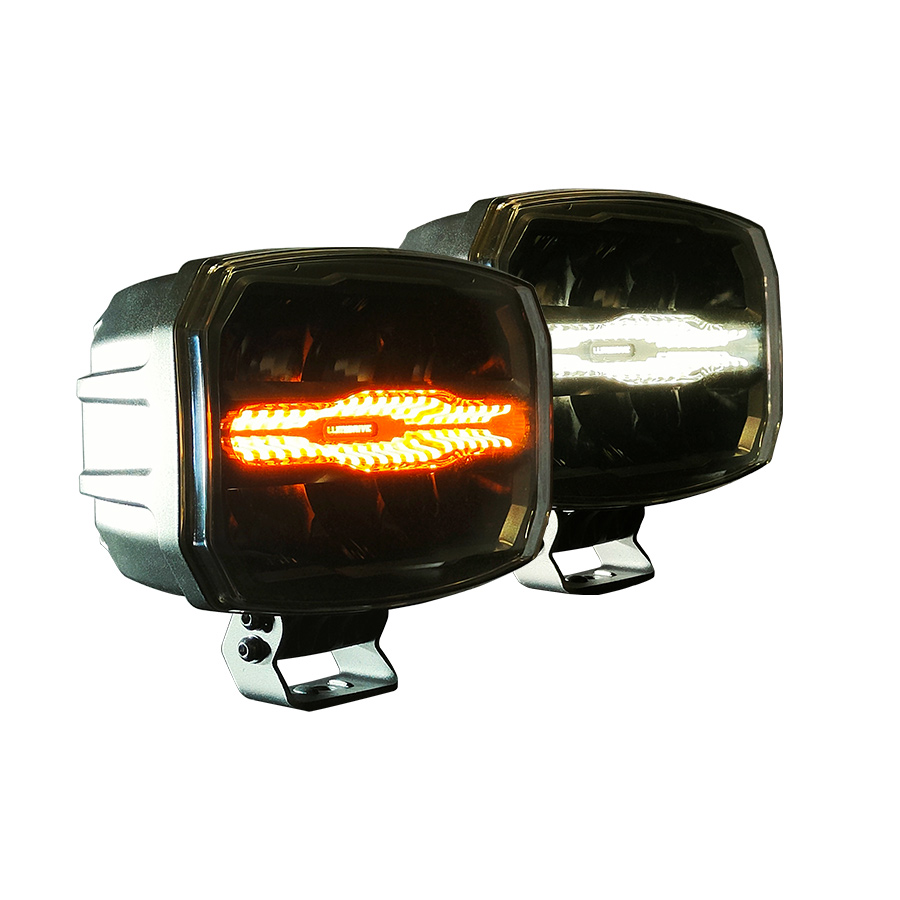

Rayzor 9 Position Light
SELECTABLE - POSITION LIGHT

You can effortlessly switch between a stunning White light and a captivating Amber light.


RAYZOR SERIES
#PART: LMD-RZR-S1

WATTAGE: 105W
LED Qty: 8
RAW LUMENS: 9.000 lm
BEAM PATTERN: DRIVING BEAM
L*W*D: 220*182*93.4mm
WEIGHT: 1.70 kg | UV RESISTANT | SCRATCH RESISTANT

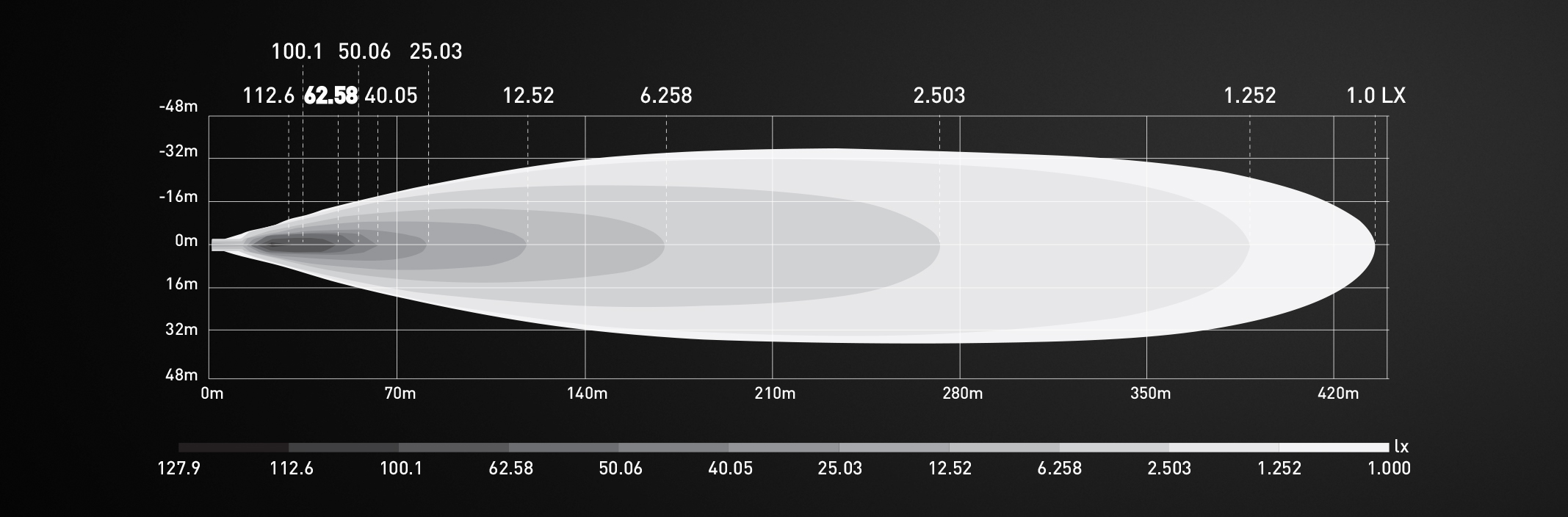

Isolux RAYZOR 9
DISTANCE: 1 Lux at 420m | WIDTH: 55m
